Industrial E-waste shredder
Detail Information
SUPU Industrial E-Waste Shredder: Core Equipment for E-Waste Resource Utilization
As a key hub in the circular economy chain, the industrial e-waste shredder is specialized in pretreating complex electronic waste such as waste appliances, circuit boards, and discarded batteries. Adopting a low-speed, high-torque dual-shaft shear structure, it is equipped with wear-resistant alloy steel blades (HRC 55-62) to efficiently tear and crush materials of varying hardness.
With a processing capacity of 4-8 tons per hour and a volume reduction rate of 70%-90%, the equipment converts bulky e-waste into uniform particles to facilitate subsequent sorting. Its closed design, combined with a pulse dust collection system, controls dust emissions ³, complying with global environmental standards.
Equipped with PLC intelligent control, it features overload protection and automatic reverse functions to avoid jamming. The modular configuration supports seamless connection with eddy current separation and magnetic separation systems, maximizing the recovery of precious metals like gold, silver, and copper while minimizing hazardous substance leakage. It is an indispensable professional equipment for e-waste recycling enterprises to achieve environmental compliance and high-value resource regeneration.
Shredding result
Application:
E-waste，server，solid waste，plastic waste，metal scarp，cardboard，document
Advantage
1. Heavy duty shredding construction with no jammed design
2. The frame is combinational structures, made from precision machined extra-thick sheet,slewing axis is forced, Lange-angle, hexagonal prism, , so good-sized material is practicable.
3. High level blade can easy to shred hard metal
4. PLC control system, forward and reverse operate and stop automatically can protect themachine when the materials is too big and much. Operate safely, low-speed running, lownoise, little dust.
5. With strong planetary gear box system to make the shredding power strong，improved the shredding effect.
6. Available with sorting solution for separate the iron，plastic and aluminum
Technical Date:
Model | SPT1000 |
Shredding material | E-waste，solid waste，metal scarp，plastic，document |
Shredder construction |
Four shafts shredding |
Blade construction | High level heat treatment blade |
Shredding Particles | 50mm*50-150mm |
Throughout per hour |
2500-6000 KG per hour
|
Feeding width | 1000 mm |
Power/ Voltage | 130KW / 380V/ 50HZ |
Discharge way | discharge with auger |
Machine weight | 12500 KGS |
|

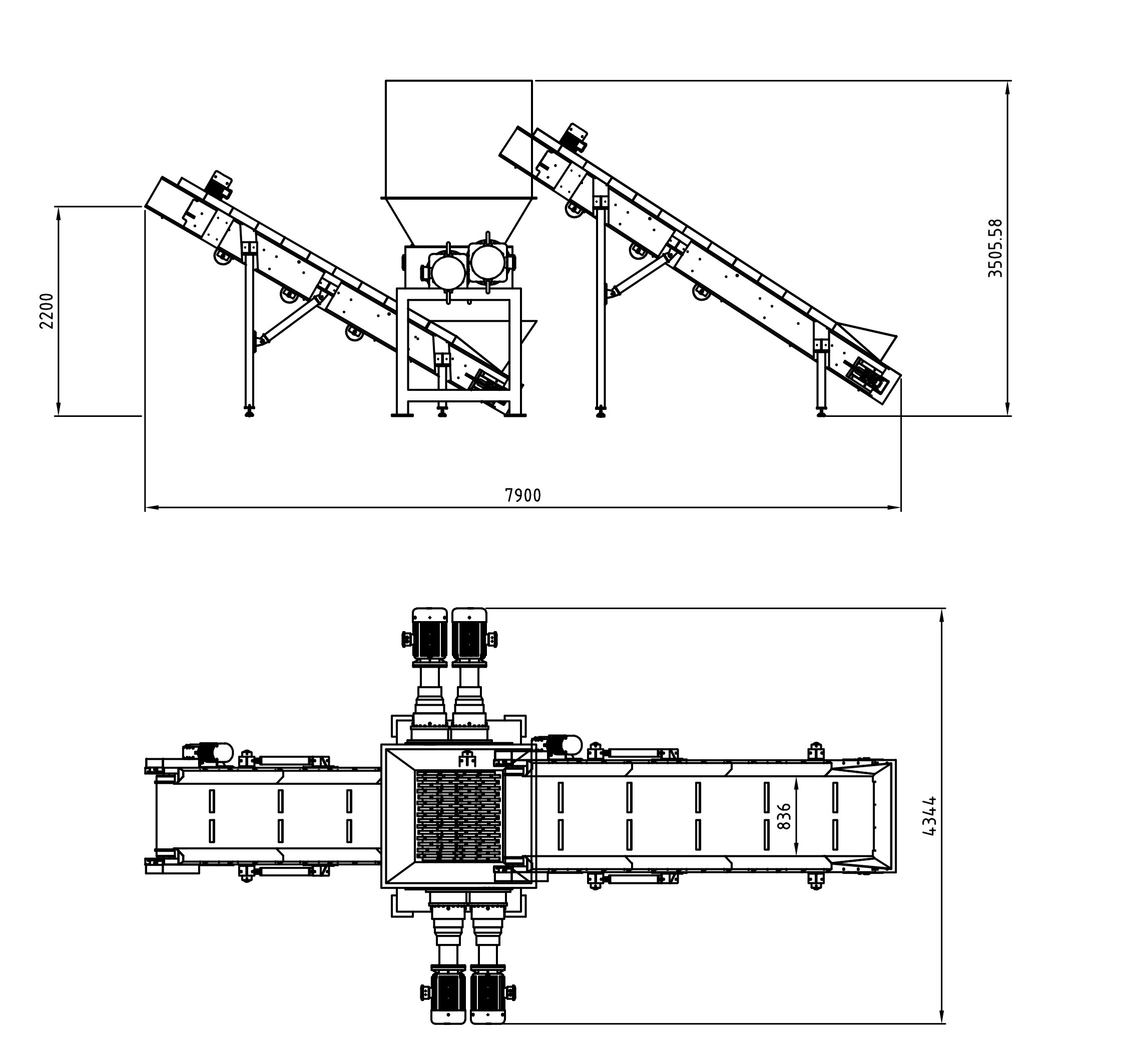

Machine size
|
L7900*W4344*H2200mm |
