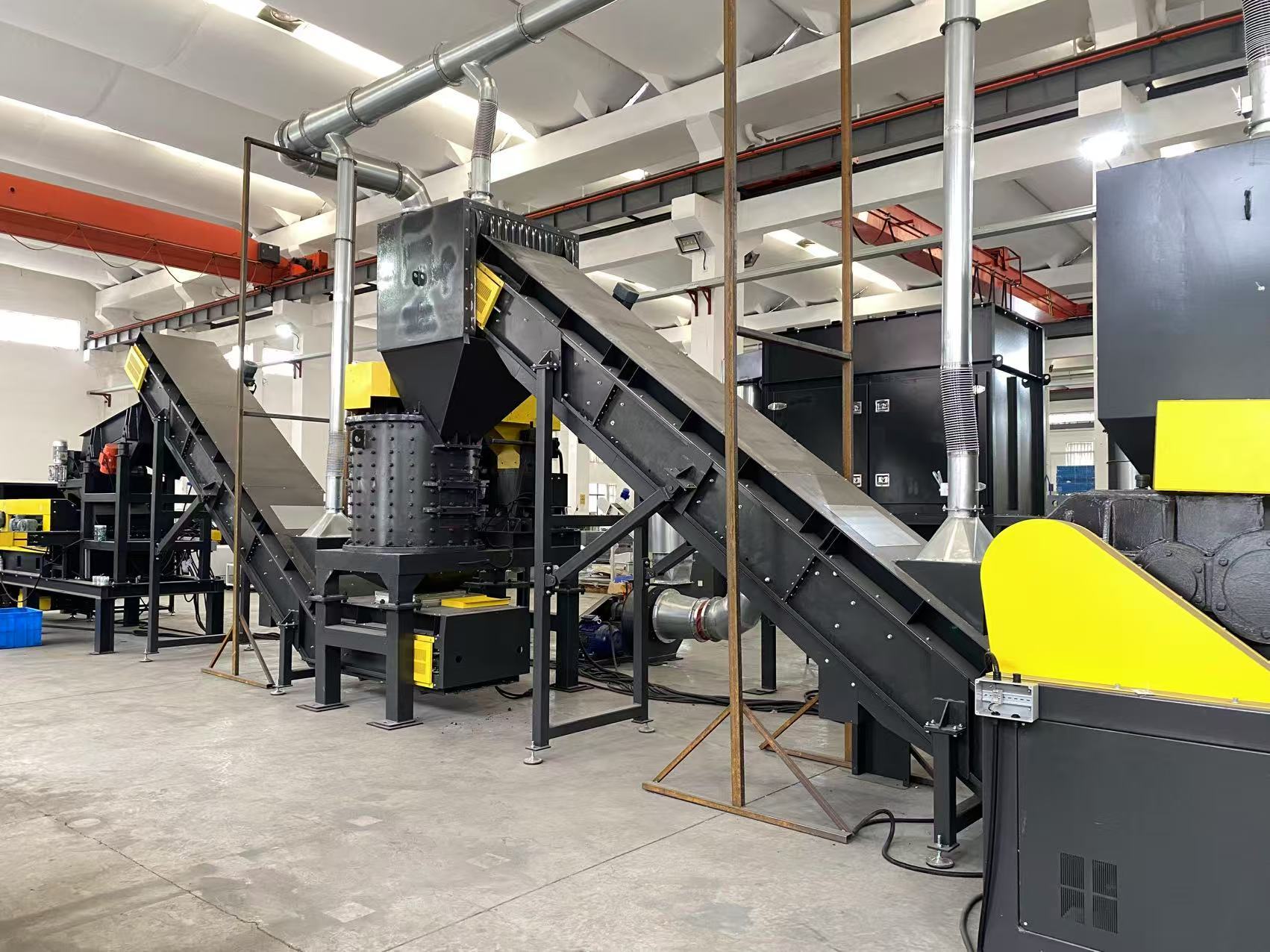

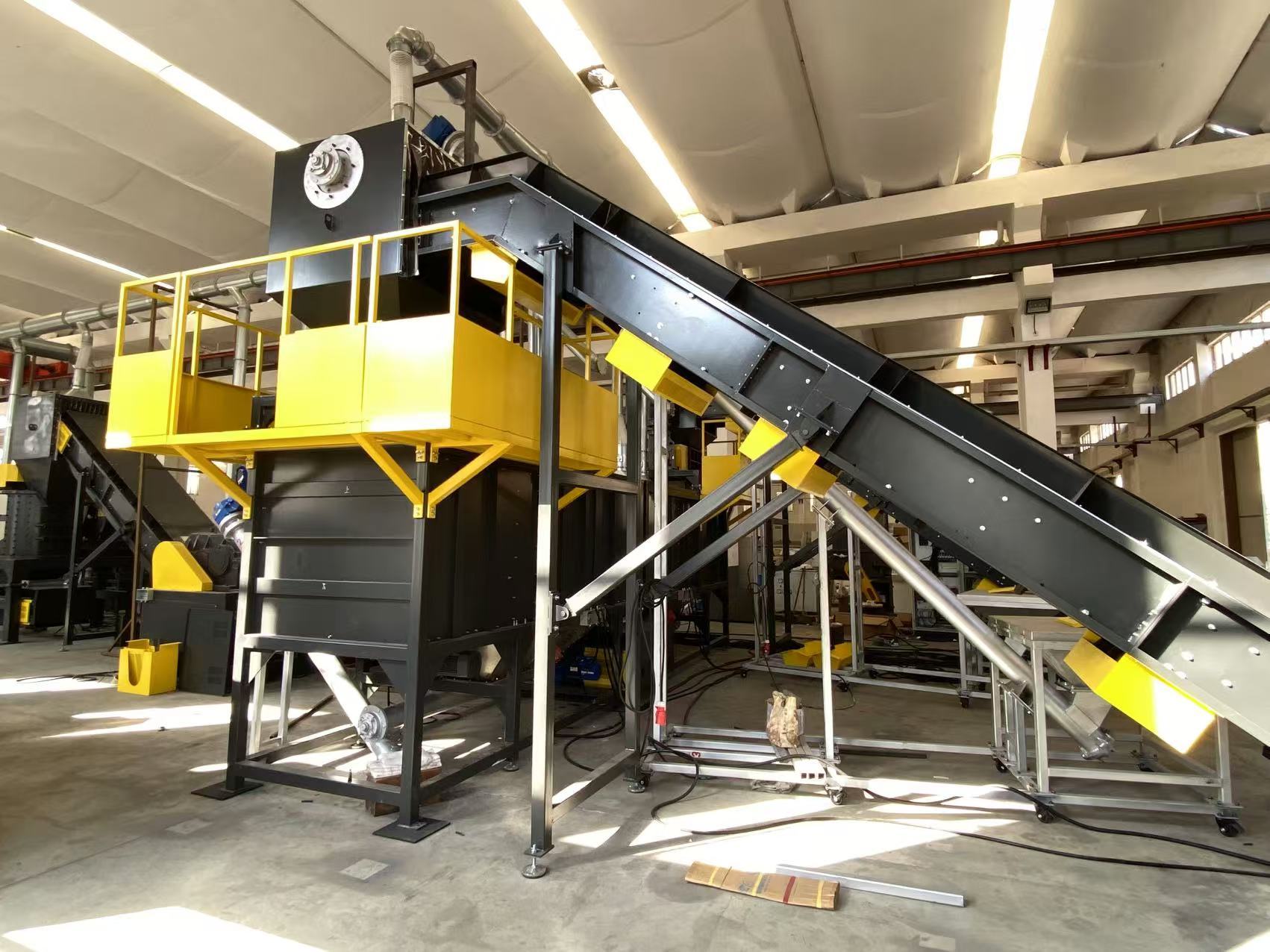

Supu Non Explosion Technology Toner Cartridge Shredding and Recycling line

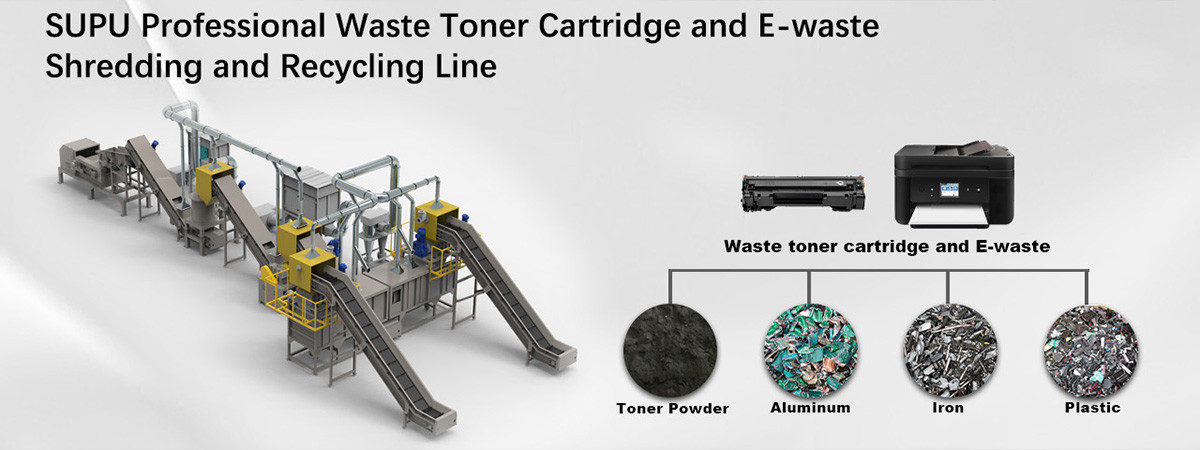

Laser toner cartridge contain toner powder，toner powder is very easy to explosion when it process recycling，Supu Toner cartridge recycling line design with non-explosion technology，safety and high efficiency to process the toner cartridge to be separated aluminum，plastic，iron and toner powder.

Transform waste into resources with the Supu Toner Cartridge Recycling Line! This cutting-edge equipment processes over 1 ton of cartridges hourly, safely handling flammable toner powder with its explosion-proof design. It efficiently separates recyclable materials like aluminum, plastic, and iron, while its dust collection

 system prevents workplace contamination. Perfect for e-waste recyclers and manufacturers, Supu maximizes resource recovery, reduces environmental impact, and promotes a circular economy. By choosing Supu, bsinesses can achieve their sustainability goals while maintaining operational efficiency and safety.

ADVANTAGES:

High performance：

1) non-explosion to shred the waste toner cartridge , safety working operation

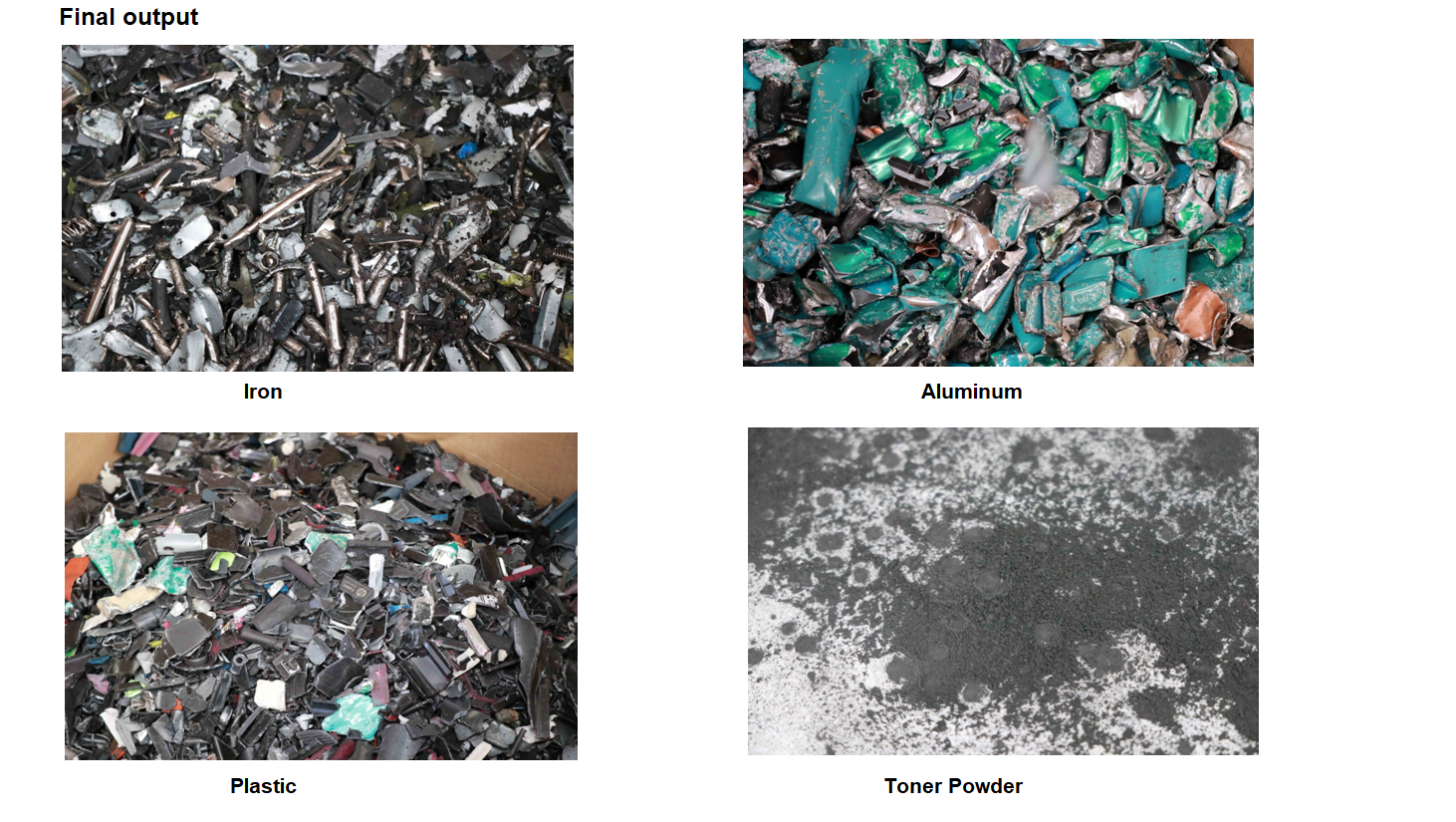

2) separation for aluminum，iron and plastic to recycling

3) high efficiency to collect the toner powder, final output particle no toner powder ，clear material good to resell

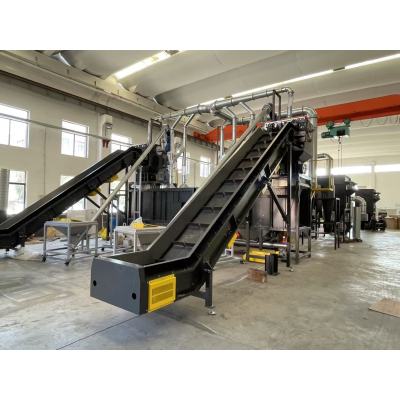

1. Feeding the toner Cartridges to the first stage shredder with variable frequency feed conveyor belt, double shafts and double motor drive can meet the requirements of continuous shredding of materials, after the shredding output size is 30mm*150mm;

2. The roller screen is used to shake and screen out materials and toner. The toner duster collection can remove 95% of toner

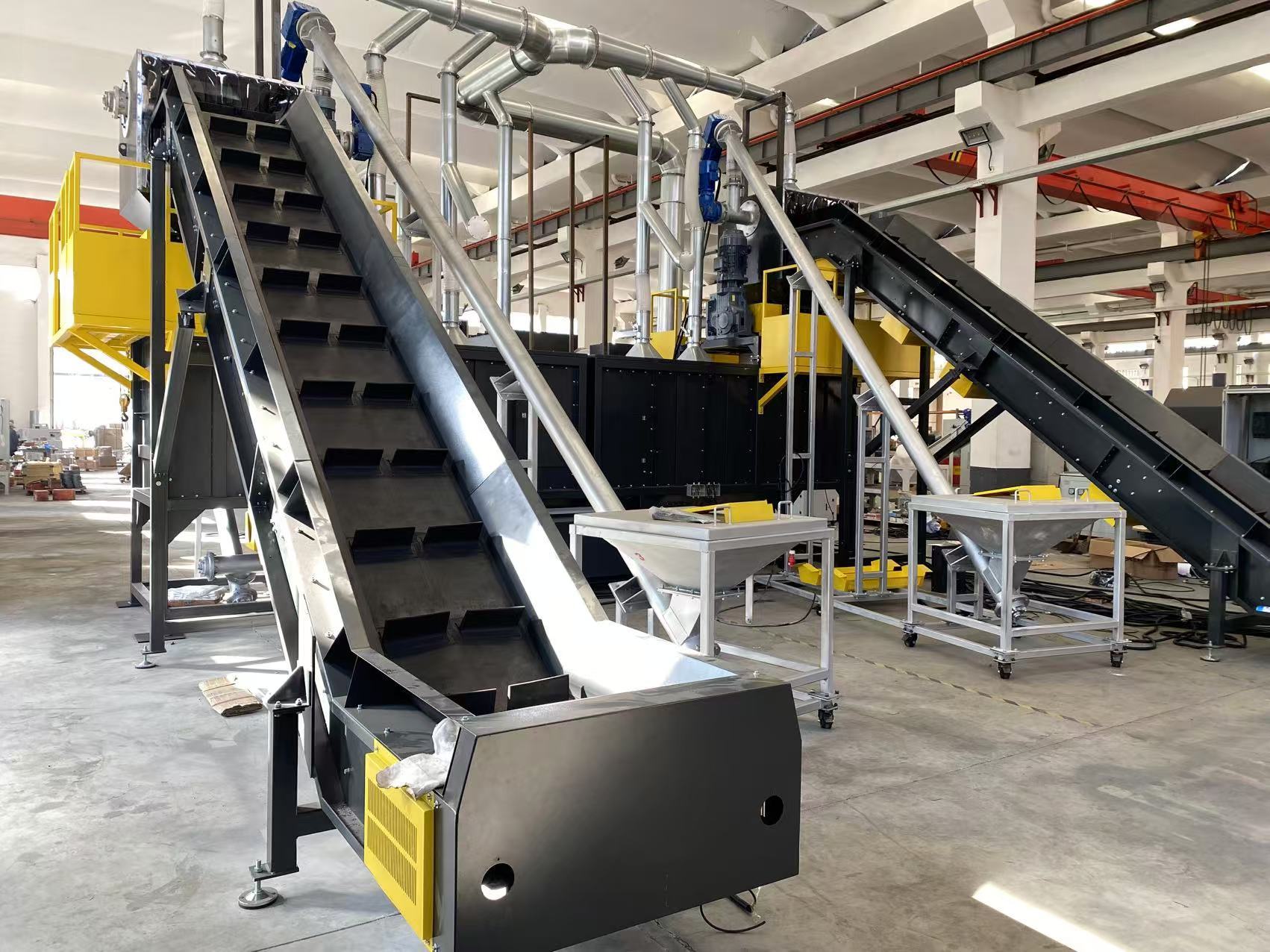

3. Drive the conveyor belt to send the toner cartridge fragments to the hammer mill with the output size of 20mm*80mm, and the sealed dust suction pipe shall clear up to 99.9% carbon powder and dust;

4. Iron removal screen separates iron and delivers it to the discharge bin

5. The eddy-current sorting system separates aluminum and plastics and delivers them to their respective discharge bins

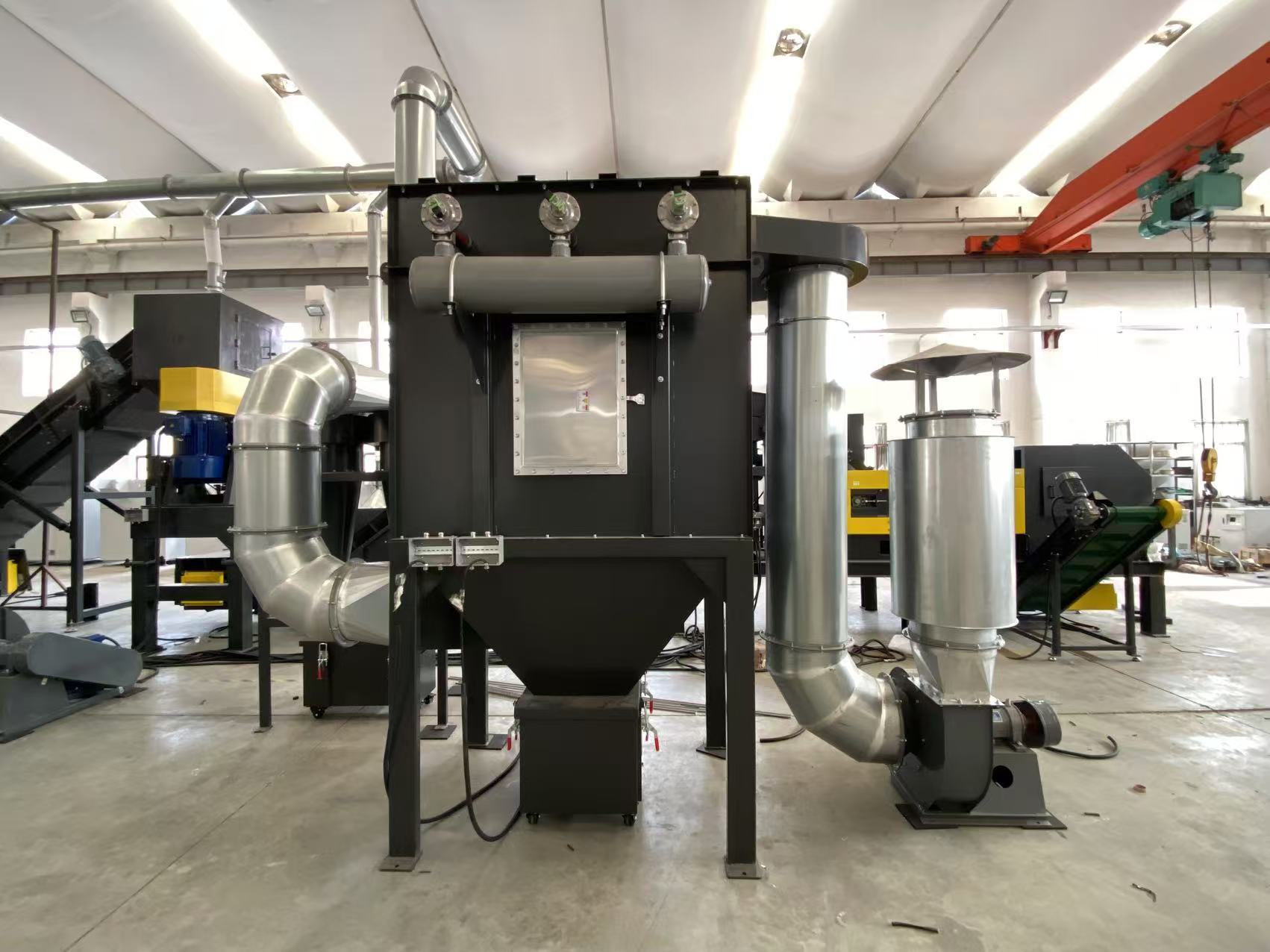

6.Air aspiration and dust collection system will connected the whole line to keep collect all the toner powder from the shredded particle.
