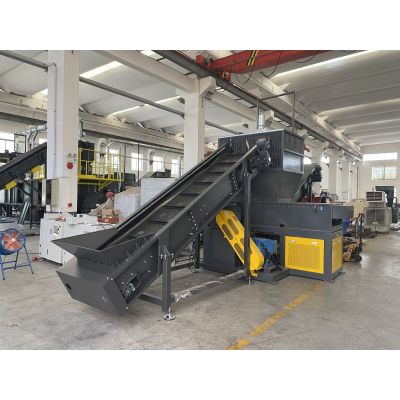

Industrial Shredder for Graphite Coated Copper Foil shredding and recycling
Detail Information
SUPU Industrial Shredder for Graphite Coated Copper Foil Shredding and Recycling
Introducing our professional industrial shredder, specifically engineered for efficient shredding and recycling of graphite coated copper foil—an essential solution for industries aiming to reduce waste, cut costs, and maximize resource utilization. As graphite coated copper foil is widely used in lithium-ion batteries, electronic components, and new energy equipment, its proper recycling not only protects the environment but also recovers valuable copper resources, creating additional economic benefits.
Our industrial shredder features a heavy-duty structure, high-strength blades, and a precision control system, ensuring stable and efficient shredding performance even for tough, coated materials. It can effortlessly reduce graphite coated copper foil into uniform, small particles, facilitating subsequent separation of graphite and copper, and laying a solid foundation for high-purity recycling.
Designed with industrial durability in mind, the shredder boasts low energy consumption, low noise, and easy maintenance, adapting perfectly to long-term continuous operation in factories, recycling facilities, and new energy enterprises. It effectively solves the challenges of traditional shredding—such as uneven particles, material jamming, and low recycling efficiency—helping you achieve green production and sustainable development.
Choose our industrial shredder for graphite coated copper foil shredding and recycling, and turn waste into treasure with reliable performance, professional design, and cost-effective solutions that drive your business forward.
Application
Advantage
1. Specialized for graphite-coated copper foil shredding
2. Uniform particle size, 5mm or 8mm，10mm，12mm small granularity
3. High-efficiency, stable operation for long hours
4. Low energy consumption, office & factory applicable
5. Anti-jamming design, easy maintenance
6. Promotes copper recycling, environmental protection
Technical Date:
Model | SPC800 |
Shredding material | Copper with graphite from waste battery |
Shredder construction |
Single shaft shredding |

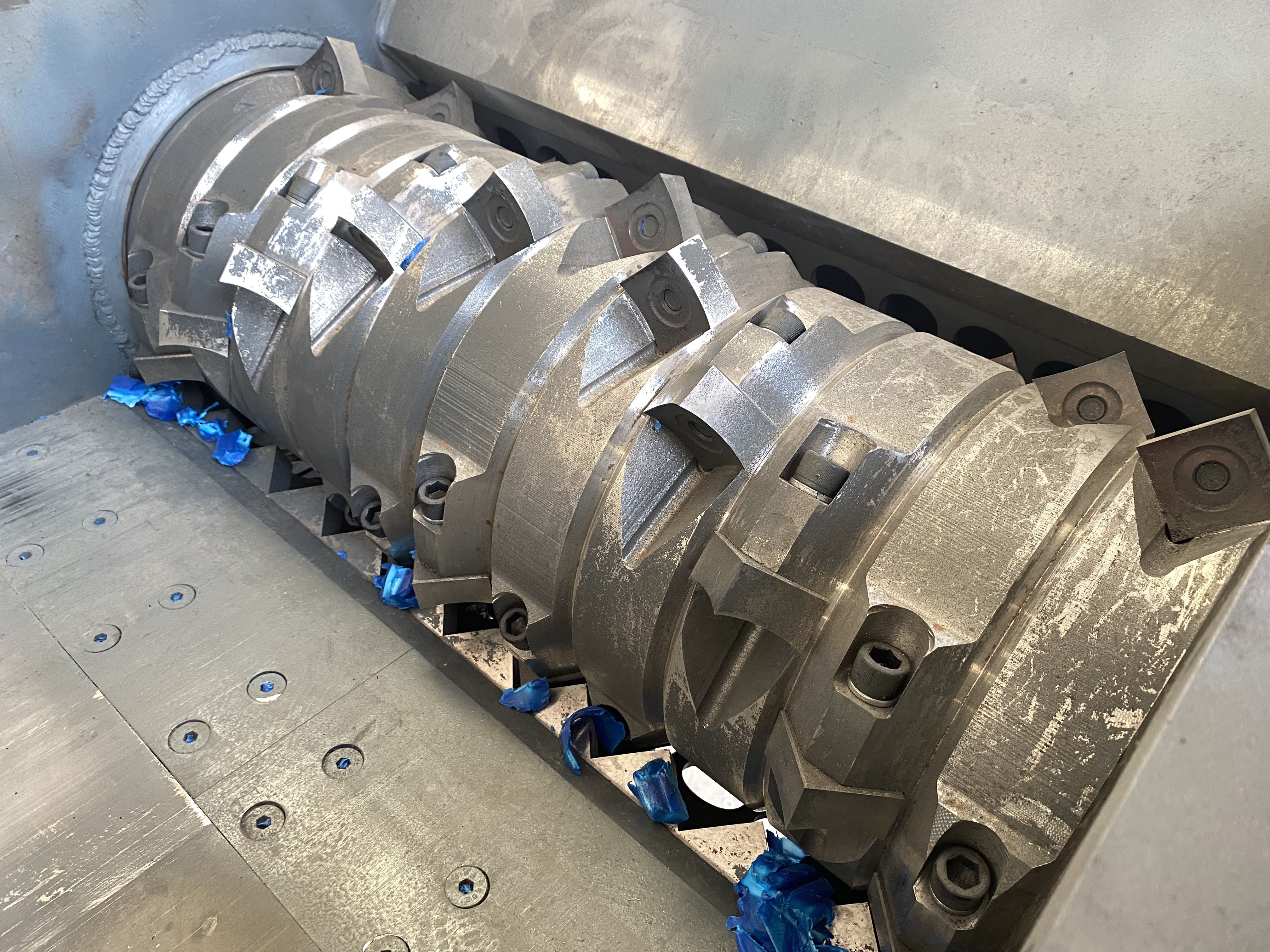

Blade construction | High level heat treatment blade |
Feeding capacity | at least 50kg copper waste per time |
Shredding Particles | 50mm for first step，then 5-6mm for second step |
Throughout per hour |
500-1500 KG per hour
|
Feeding width | 800 mm |
Power/ Voltage | 60KW / 380V/ 50HZ |
Discharge way | discharge with auger and vibrantion system，Separated copper and graphite |
Filtration system | With high efficiency air aspiration system include filter to collect all the dust and inner control, total 6 filters. |
Machine weight | 6500 KGS |
|
Machine size
|
L14800*W5100*H4900mm |
