Plastic crusher single shaft shredding machine for recycling applications.

Plastic crusher single shaft shredding machine for recycling applications.

Plastic crusher single shaft shredding machine for recycling applications.
CategoriesPlastic Crusher
AlbumView larger image
BrandSUPU
Terms of PaymentL/C, Western Union, T/T, Paypal
Update Time2019-09-21
Detail Information

Efficient and strong crushers for general use. Suitable for almost all common plastics, wood and composite materials for a wide of applications and industries purpose.

Plastic Crusher is specialized in crushing several of plastic materials into granules of different size, crushed plastic can be recycled for reproduction of plastic products, this machine can be reduce the volume of plastic waste, greatly save costs and resources


For a wide range of high-quality plastic recycling machines and plastic processing equipment. Plastic cursher machines are marked by rigid and durable design, easy of work and long machine lifetime.




Application


* Plastic crusher can crush PVC,TPR,PP,PE,EVA,PET,PC,TPE materials, waste rubber products, sponge etc.

* Plastic crusher can crush various kinds of plastic , such as plastic bottle, plastic profiles, plastic pipe, plastic plate, plastic sheet, plastic shells, plastic film, woven bag.

    Technical Data:
Model
35/60
45/80
60/80
70/100

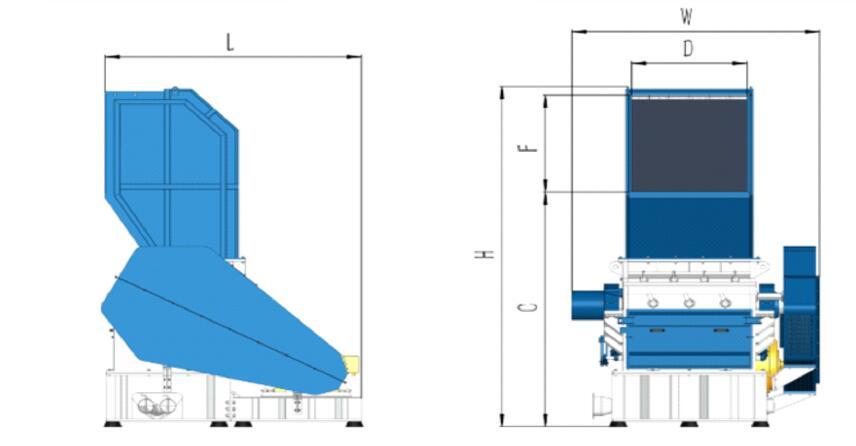

Dimension L/W/H(mm)
1600 x 1400 x 2200
1800 x 1600 x 2300
2400 x 1900 x 3200
2200 x 2600 x 3500
Hopper size D/F(mm)
600 x 650
800 x 750
800  x 950
1000 x 950
Rotor Diameter (mm)
350
450
600
700
Length of Rotor(mm)
600
800
800
1000
Main Shaft Speed(r/min)
520
520
460
460
Screen Mesh (mm)
12
12
12
Rotor Blade (PCS)
3 x 2
3 x 2
5 x 2
5 x 2
Counter Blade (PCS)
2 x 1
2 x 2
2 x 2
2 x 2
Main Motor Power(KW)
30
45
75
90
Product Weight ( KG )
2400
3600
4800
10600
Model
70/120
80/120
80/160
Dimension L /W/H(mm)
2400 x 2600 x 3500
2500 x 2800 x 3900
2900 x 2800 x 3900
Hopper size D/F (mm)
1200 x 1050
1200 x 1050
1600 x 1050
Rotor Diameter (mm)
700
800
800
Length of Rotor (mm)
1200
1200
1600
Main Shaft Speed(r/min)
420
420
420
Screen Mesh (mm)
12
12
12
Rotor Blade( PCS)
5 x 2
7 x 2
7 x 4
Counter Blade (PCS)
2 x 2
2 x 2
4 x 2
Main Motor Power(KW)
110
132
160
Product Weight (KG)
11300
12500
13800

 Advantages:

*Small space occupation, low power consumption.
*Easy to operate, easy to clean and maintain,
*Crusher blades adopting steel materials durable in use.
*Cleaning drum can be equipped for each model upon requirement.
*Multiple models available to fit different materials with different size

 How does plastic crusher work?


The motor of plastic crusher drive moving blade cutter to rotate at high speed, high speed rotating moving blades form a relative movement with fixed blades. Through the clearance between them, big materials will be crushed into small sizes, crushed plastic that meet requirements will discharged through the screen mesh, the size of this screen determines the final particle output size.


Customized to ensure the maximum production capacity.
Technical Data
