Horizontal Automatic hydraulic baler for baling press paper, cardboard and film

Horizontal Automatic hydraulic baler for baling press paper, cardboard and film

Horizontal Automatic hydraulic baler for baling press paper, cardboard and film
Horizontal Automatic hydraulic baler for baling press paper, cardboard and filmHorizontal Automatic hydraulic baler for baling press paper, cardboard and filmHorizontal Automatic hydraulic baler for baling press paper, cardboard and film
CategoriesBALER
AlbumView larger image
BrandSUPU
ModelSPW30QT
Terms of PaymentL/C, Western Union, T/T, Paypal
Update Time2019-09-21
Detail Information

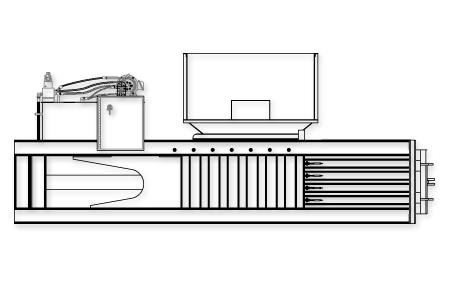

Horizontal automatic hydraulic baler

horizontal automatic models, can be strapped by iron wire automatically ,
widely used in packaging factory , carton factory , printing factory , waste classifying processing stations, professional waste recycle station and other place ;

    Compared to the Hydraulic Vertical Baler, Horizontal Baling Press Machine is much larger both in size and capacity. The waste material is loaded from the top by conveyor or air cyclone system and compressed from the sides automatically. Horizontal baling press, equipped with PLC and touch screen, is ideal equipment for baling large quantities of recyclable materials and the capacity range can be from 1.5 tons/h to 40tons/h (waste paper).

   The recyclable materials such as scrap papers, cardboards, carton boxes, plastic films, and other loose materials can be fed into the baling press automatically and continuously, so the utilization of Horizontal Baling Press Machine can reduce labor cost greatly. On the other hand, these loose materials are compressed into compact tight bales which make them easier to transport and stack, so the utilization of Horizontal Baling Press Machine can reduce the transportation cost and save the valuable floor space.


  Application:

  Paper
Cardboard
Films
  Textile
Technical Data:

Model

SPW30QT

SPW40QT

SPW60QT

Hydraulic power

30Ton

40Ton

60Ton

Packaging sizeW*H*L

500*500*300-1000mm

720*720*(300-1500)mm

750*850*(300-1600)mm

Feed opening sizeL*W

950*500mm

1150*720mm

1350*750mm

Bale density

250-300Kg/m3

350-450Kg/m3

400-500Kg/m3

Bale line

3Line

4Line

4Line

Capability

1-1.5Ton/Hr

1.5-2.5Ton/Hr

3-4Ton/Hr

Power

11KW/15HP

15KW/20HP

22KW/30HP

Machine sizeL*W*Hmm

4982*2830*1712

6500*3190*2100

6650*3300*2200

Machine weight

4Ton

6.5Ton

8Ton


  •

      Advantages


  •  *Automatic press system with force for high volume reduction of residual (recyclable)  materials.

  •  *Variable structure – feed side/bale ejection – can be adapted to spatial conditions

  •  *Easy binding of the pressed bales thanks to pre-cut wires with snap closure eyes.

  •  *Highly reliable and user friendly

  •  *Flexible
  •  *Longevity Innovative control system
An economic and ecological solution

Technical Data

Model

SPW30QT

SPW40QT

SPW60QT

Hydraulic power

30Ton

40Ton

60Ton

Packaging sizeW*H*L

500*500*300-1000mm

720*720*(300-1500)mm

750*850*(300-1600)mm

Feed opening sizeL*W

950*500mm

1150*720mm

1350*750mm

Bale density

250-300Kg/m3

350-450Kg/m3

400-500Kg/m3

Bale line

3Line

4Line

4Line

Capability

1-1.5Ton/Hr

1.5-2.5Ton/Hr

3-4Ton/Hr

Power

11KW/15HP

15KW/20HP

22KW/30HP

Machine sizeL*W*Hmm

4982*2830*1712

6500*3190*2100

6650*3300*2200

Machine weight

4Ton

6.5Ton

8Ton
